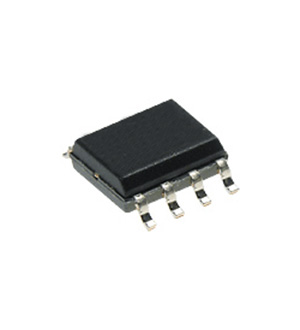

LM2594MX-5.0/NOPB, SOIC8

The LM2594MX-5.0/NOPB is a step-down Voltage Regulator capable of driving a 0.5A load with excellent line and load regulation. It requires a minimum number of external components, this regulator is simple to use and feature internal frequency compensation, a fixed-frequency oscillator and improved line and load regulation specifications. The LM2594xx series operates at a switching frequency of 150kHz, thus allowing smaller-sized filter components than what would be needed with lower-frequency switching regulators. Because of its high efficiency, the copper traces on the printed-circuit board are normally the only heat sinking needed. A standard series of inductors (both through-hole and surface-mount types) are available from several different manufacturers optimized for use with the LM2594xx series. This feature greatly simplifies the design of switch-mode power supplies. External shutdown is included, featuring typically 85µA standby current.

Тип	Стабилизатор понижающий импульсный DC-DC серии LM2594
Тип упаковки	Tape and Reel (лента в катушке)
Входное напряжение	4,5…40 (max) В
Выходное напряжение	5 В
Выходной ток	500mA
Корпус	8-SOIC
Диапазон рабочих температур	-40…+125 °С
Способ монтажа	поверхностный (SMT)
Тип выхода	Fixed
Количество каналов	1
Упаковка	REEL, 2500 шт.
Вес	0,27
Описание	lm2594.pdf
MSL(Уровень чувствительности к влажности)	1
Тип регулятора	Step-Down (Buck)
Вес брутто	0.14
Транспортная упаковка: размер/кол-во	67*45*51/500
Нормоупаковка	2500 шт
Описание Eng	Switch. Reg 0,5A 5V 45Vs SO8
