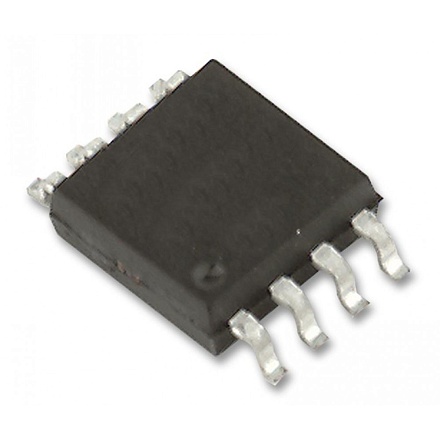

TPS7A4901DGNR, LDO регулятор напряжения Texas Instruments, регулируемый, 150 мА, корпус HVSSOP8

The TPS7A4901DGNR is a 36V, 150mA, ultra low noise, positive linear regulator in 8 pin MSOP package. This is including a CMOS logic-level-compatible enable pin and capacitor programmable soft-start function that allows for customized power management schemes. Other features include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. It is designed using bipolar technology and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes IC an excellent choice to power operational amplifiers, ADCs, DACs and other high-performance analogue circuitry. This linear regulator is suitable for post dc/dc converter regulation. By filtering out the output voltage ripple inherent to dc/dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio and RF applications.

Тип упаковки	Tape and Reel (лента в катушке)
Выходное напряжение	1.176 V ~ 33 V
Выходной ток	150mA
Корпус	HVSSOP-8
Упаковка	REEL, 2500 шт.
Минимальное входное напряжение	3 V
Максимальное входное напряжение	35 V
НУЛЛ 0	1.0
MSL(Уровень чувствительности к влажности)	1
Вес брутто	0.21
Транспортная упаковка: размер/кол-во	64*41*41/2500
Нормоупаковка	2500 шт
Описание Eng	REG LDO ADJ 0.15A 8MSOP
Тип стабилизатора	Positive Adjustable
