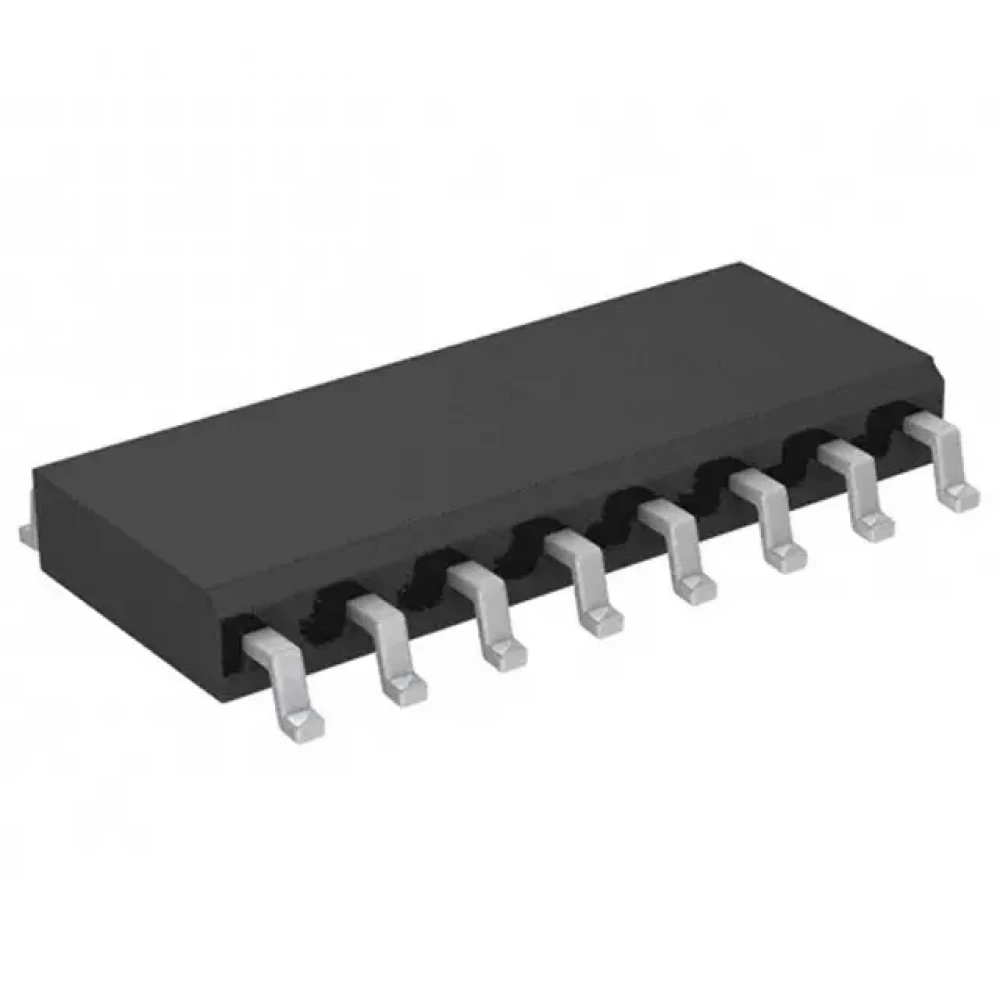

STP08DP05MTR, Светодиодный драйвер ST Microelectronics, 100мА, 30МГц, корпус SOIC-16

The STP08DP05MTR is a 8-bit low-voltage constant current LED Sink with full outputs error detection. The monolithic low voltage/low current shift register designed for LED panel displays. It contains a 8-bit serial-in, parallel-out shift register that feeds a 8-bit D-type storage register. In the output stage, eight regulated current sources were designed to provide 5 to 100mA constant current to drive the LEDs. The STP08DP05 is backward compatible in the functionality and footprint with STP8C/L596 and extends its functionality with open and short detection on the outputs. The detection circuit checks 3 different conditions that can occur on the output line: short to GND, short to VO or open line. The data detection results are loaded in the shift register and shifted out via the serial line output.

Тип	Светодиодный драйвер
Тип упаковки	Tape and Reel (лента в катушке)
Напряжение	питания 3...5,5В
Выходной ток	100 мА
Корпус	SOIC-16
Диапазон рабочих температур	-40…+125 °С
Упаковка	REEL, 2500 шт.
Количество	выходов - 8
Описание	LED Driver IC 8 Output Linear Shift Register Dimming 100mA 1SOIC-16
MSL(Уровень чувствительности к влажности)	3
Вес брутто	0.41
Транспортная упаковка: размер/кол-во	60*50*50/1000
Нормоупаковка	2500 шт
Описание Eng	8-bit constant-current LED driver with output error detection, I= 5 to 100 mA
